| Item | Specifications |
|---|---|
| SERIES | Electric Lift up Window |
| Mesh | 1. Stainless steel security mesh 2. Aluminium security mesh 3. Fiberglass flyscreen |
| Profile | 6063-T5 Thermal Break Aluminum Profile |
| Thickness | 1.8-3.0mm Aluminium Thickness |

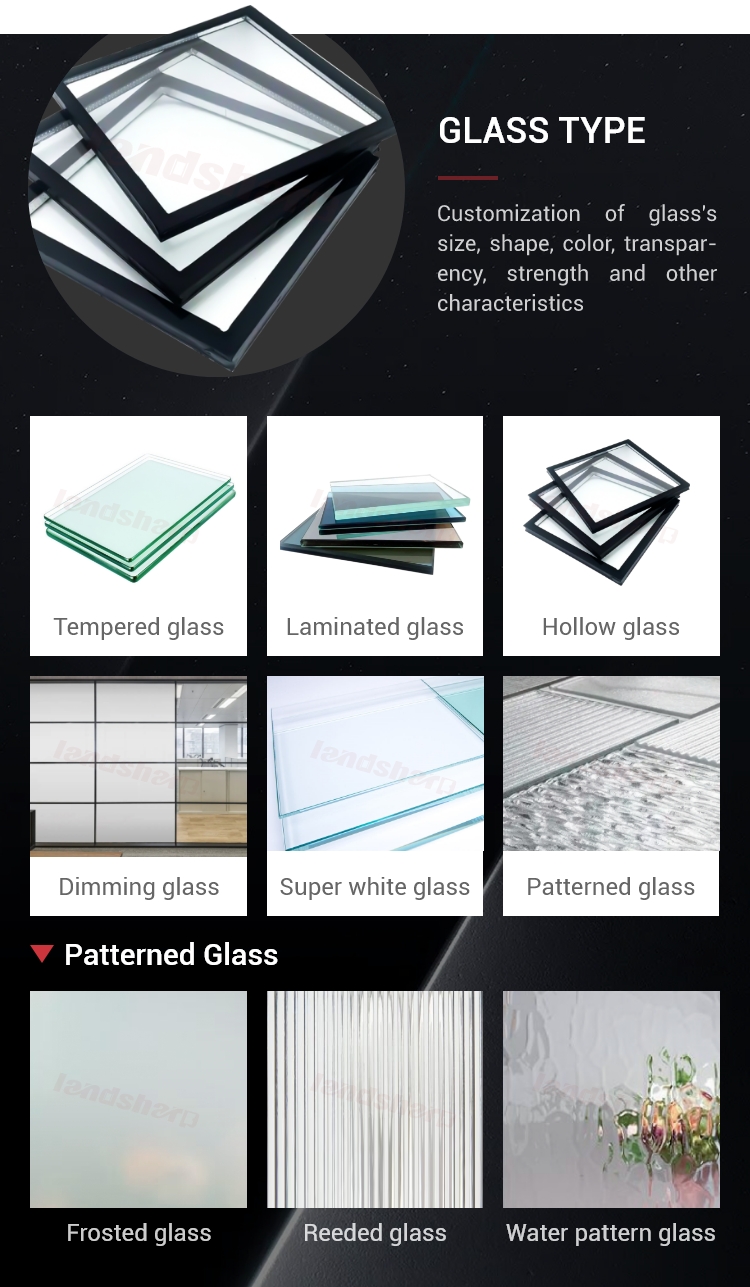

| Glass | Tempered glass / hollow glass / laminated glass / Bullet-proof Glass / coated glass / low-e glass / heat reflecting glass / art glass |
| Glass Recommend | 1. Double tempered glazing: 5mm+15A(Air)+5mm; 5mm+15A+5mm tinted; 5mm+15A+5mm Low-E; 5mm+27A+5mm 2. Single tempered glazing: 8/10/12/15/19/21mm 3. Laminated glazing: 5mm+0.76+5mm, 5mm+0.38+5mm |
| Hardware | China top brand / German Brand |

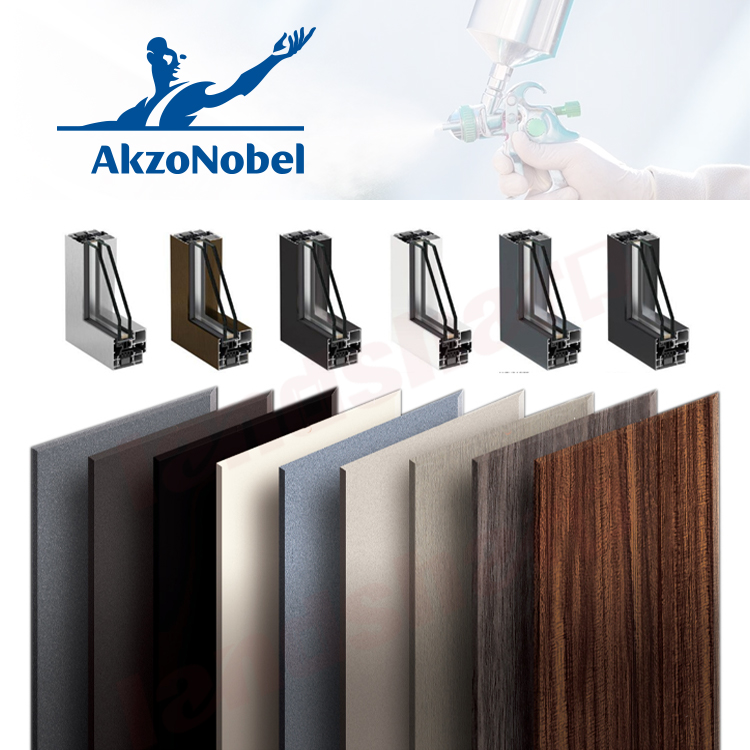

| Surface Treatment | Powder Coating, Anodized Wooden Grain, PVDF Coating |
| Opening Mode | Vertical Sliding |
The appearance of thermal break aluminum doors and windows is simple and generous, with smooth lines and colorful finishes. Utilizing anodic oxidation, powder spraying, and fluorocarbon spraying, surface treatments can produce profiles in different colors that match various architectural styles and improve the overall beauty of the building.
The structural design is firm, and the wind pressure strength is far better than plastic steel windows and ordinary aluminum alloy windows. It can withstand high wind pressure to ensure the safety performance of doors and windows in wind and rain weather, making it especially suitable for coastal regions and areas subject to high wind conditions.

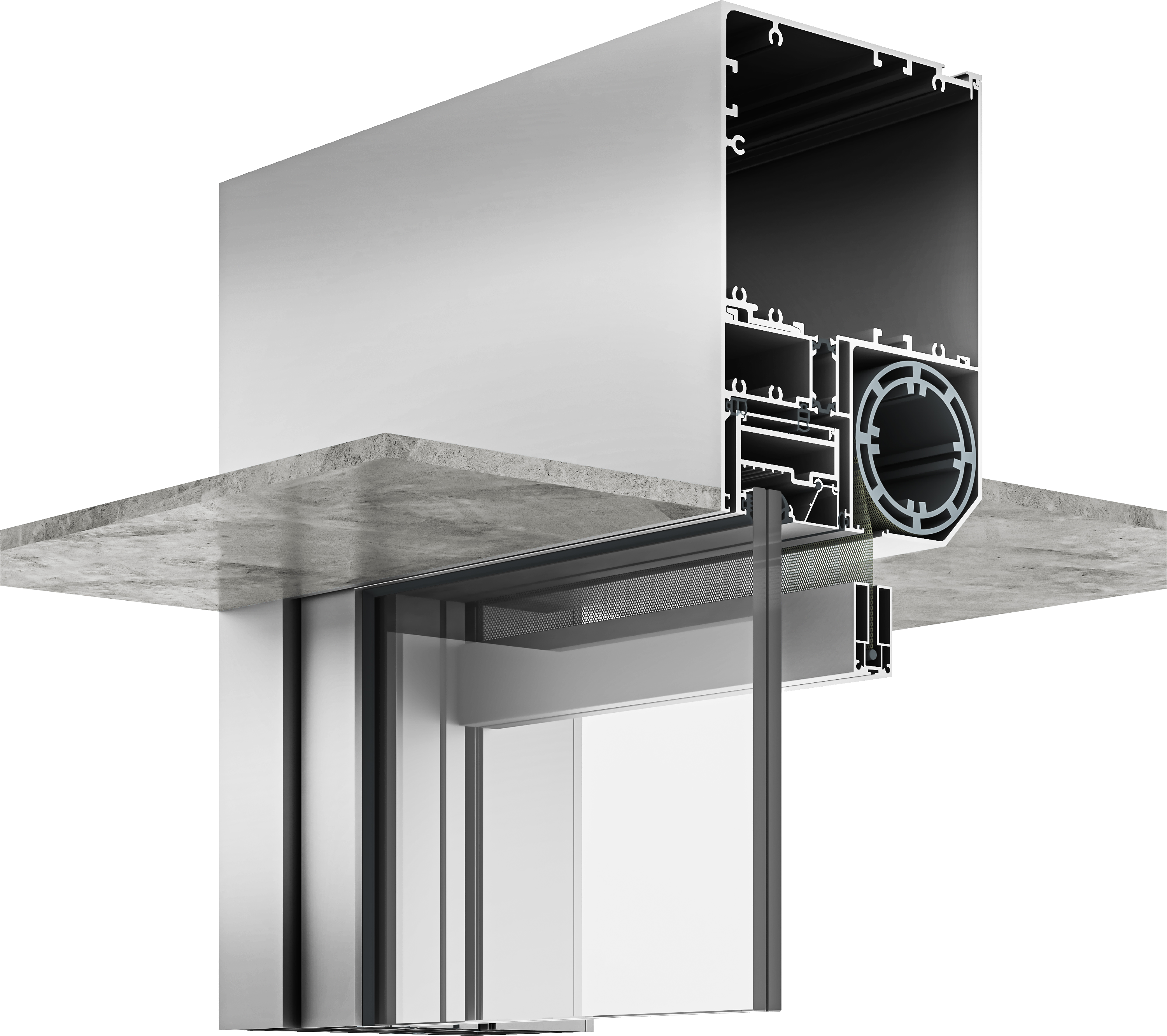

Fills the gap between the aluminum and the corner code for enhanced stability.
PA66 high thermal insulation strip completely blocks the heat conduction path of the profile.
Avoids the possibility of rainwater backflow.
Sound Insulation: RW ≥ 30 dB
Wind Pressure Resistance: 4500 Pa
Air Permeation Resistance: 70/150
Water Resistance: 450mm

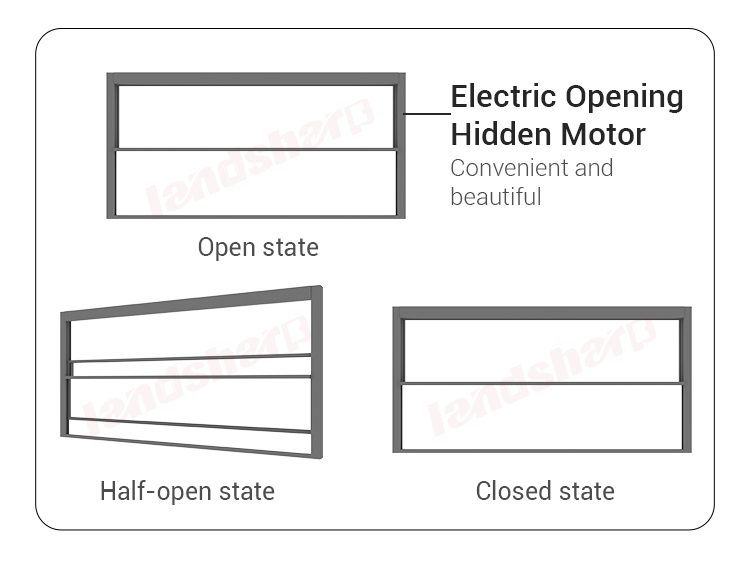

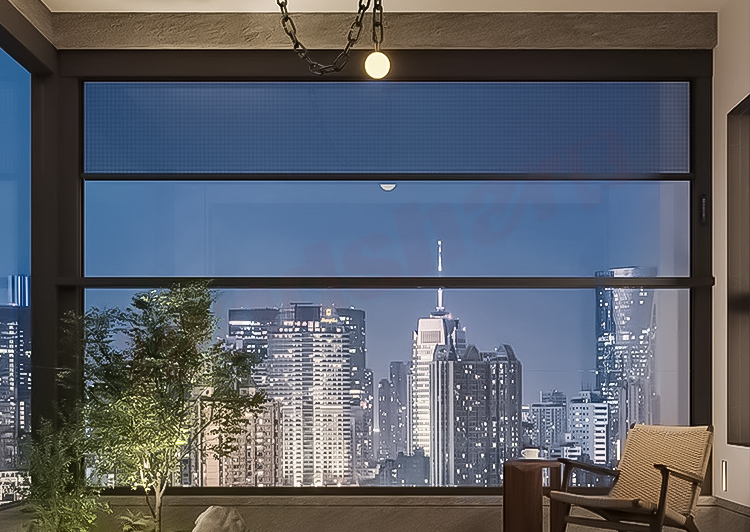

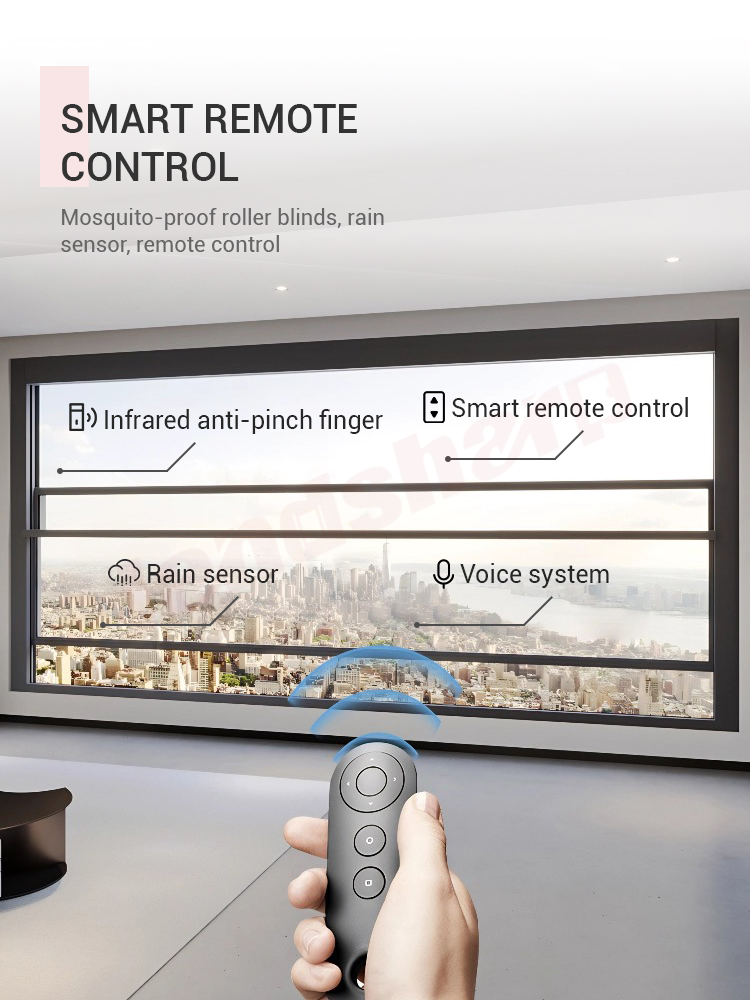

Intelligent control supporting remote control and voice assistants. One-key lift for fast opening and closing, especially for large areas or high-rise applications.
Built-in infrared or pressure sensors trigger anti-pinch features, automatically reversing or stopping when meeting obstacles. The anti-theft design supports status monitoring, triggering alarms upon unauthorized opening.
Includes a high-efficiency mosquito net to prevent pests. Smart rain-sensing capabilities automatically close windows in case of rain, protecting indoor areas from water damage.
Thermal insulation to reduce heat conduction: The use of thermal insulation broken bridge aluminum alloy profiles can effectively reduce the heat conducted through the doors and windows, maintaining stable indoor temperatures that remain warm in winter and cool in summer.
Energy saving: In winter, window frames with insulation strips can reduce heat loss by 1/3; in summer, they minimize cooling loss, reducing heating and cooling costs in line with environmental protection concepts.

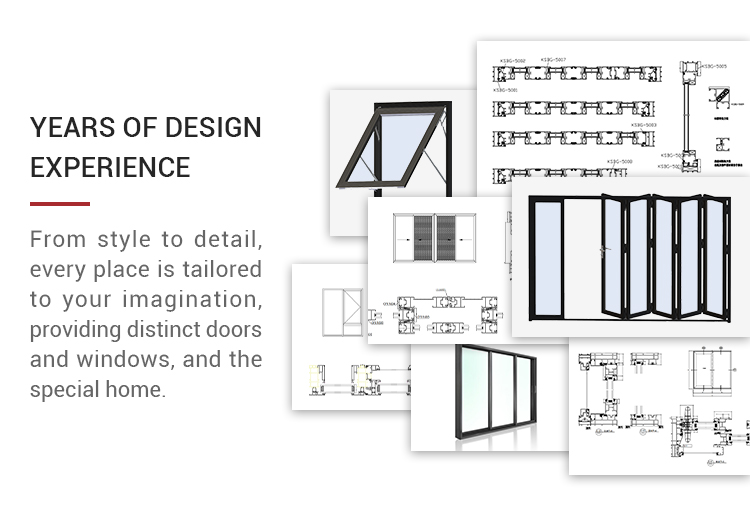

Customization Services: If you want to customize different sizes and materials, we provide tailored customization services with a minimum order quantity (MOQ) of just 1.

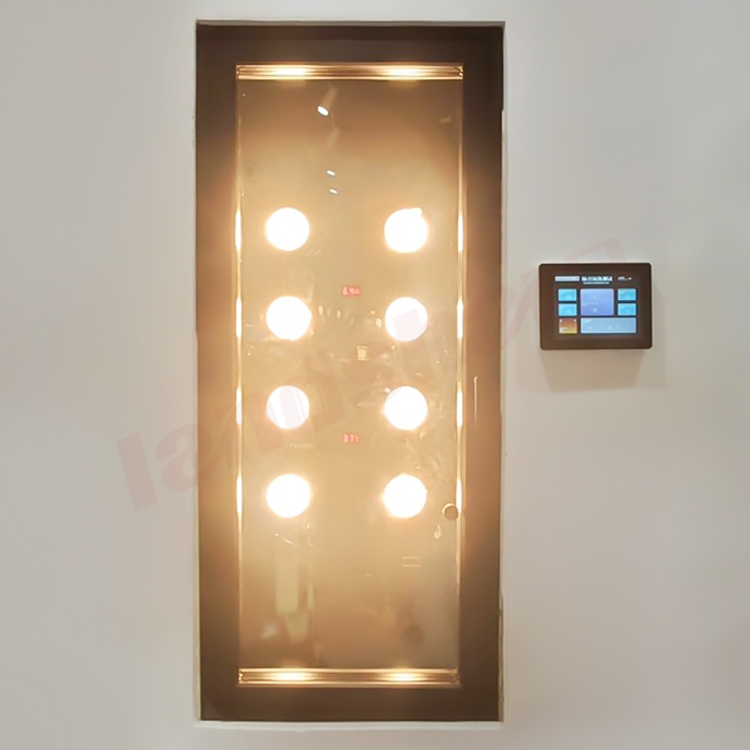

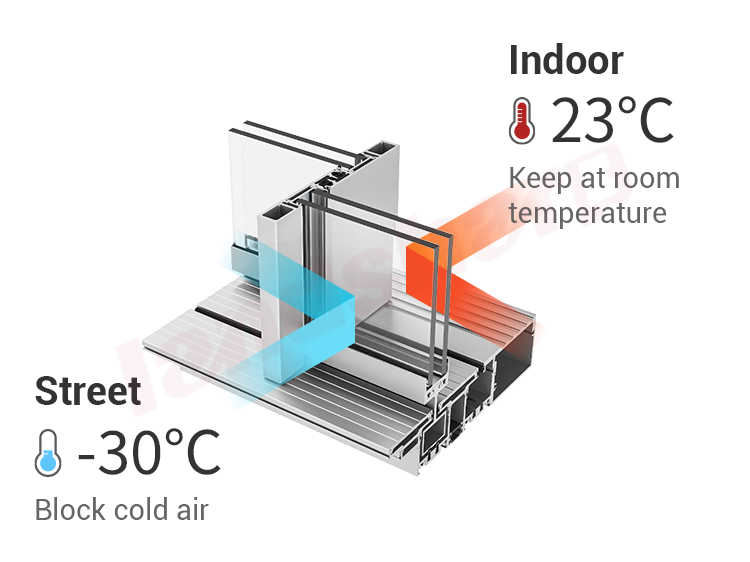

A temperature difference environment ranging from -30°C to +70°C is simulated in an artificial climate chamber to monitor temperature distribution and heat flow dynamics.

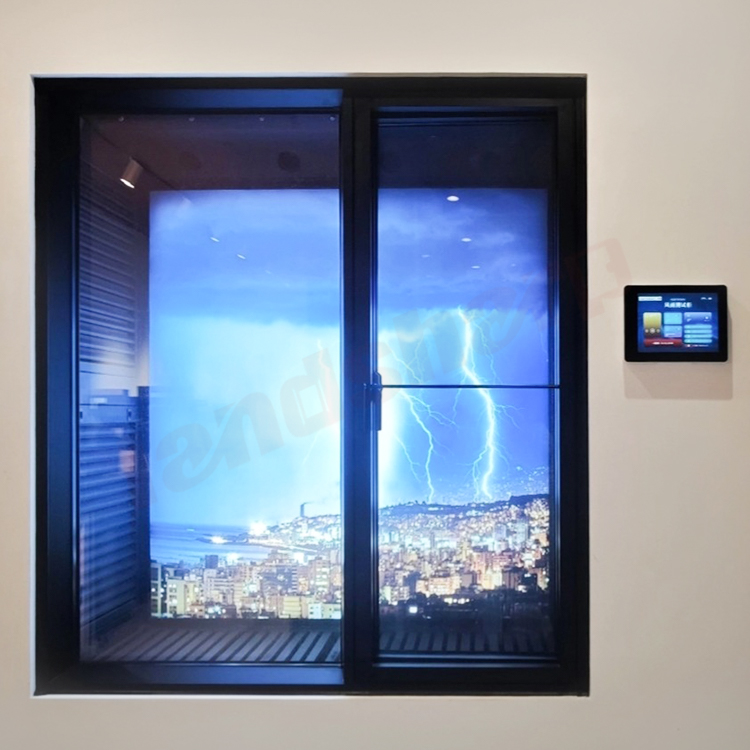

Simulates a 12-level typhoon (wind speed ≥32m/s) combined with heavy rain (flood volume ≥4L/m²·min) in a wind tunnel laboratory.
U Value < 2.2 W/(m²·K)
The three-layer insulating low-e glass and seamless welding technology enhance the integrity of the frame, minimizing heat dissipation at the joints.
Corrosion resistance: Passed the 240-hour neutral salt spray test, suitable for high-humidity coastal areas.
Weather resistance: After 4000 hours of QUV accelerated aging test, the light retention rate is over 90%, and the color stability far exceeds that of ordinary paint (no fading or yellowing for 5-10 years).
Compliance meets AS2047 (Australian window performance standard), UL (American product safety certification), ISO9001 (international quality management system certification), and NFRC (American window and door energy efficiency rating standard) to satisfy various regional market demands.

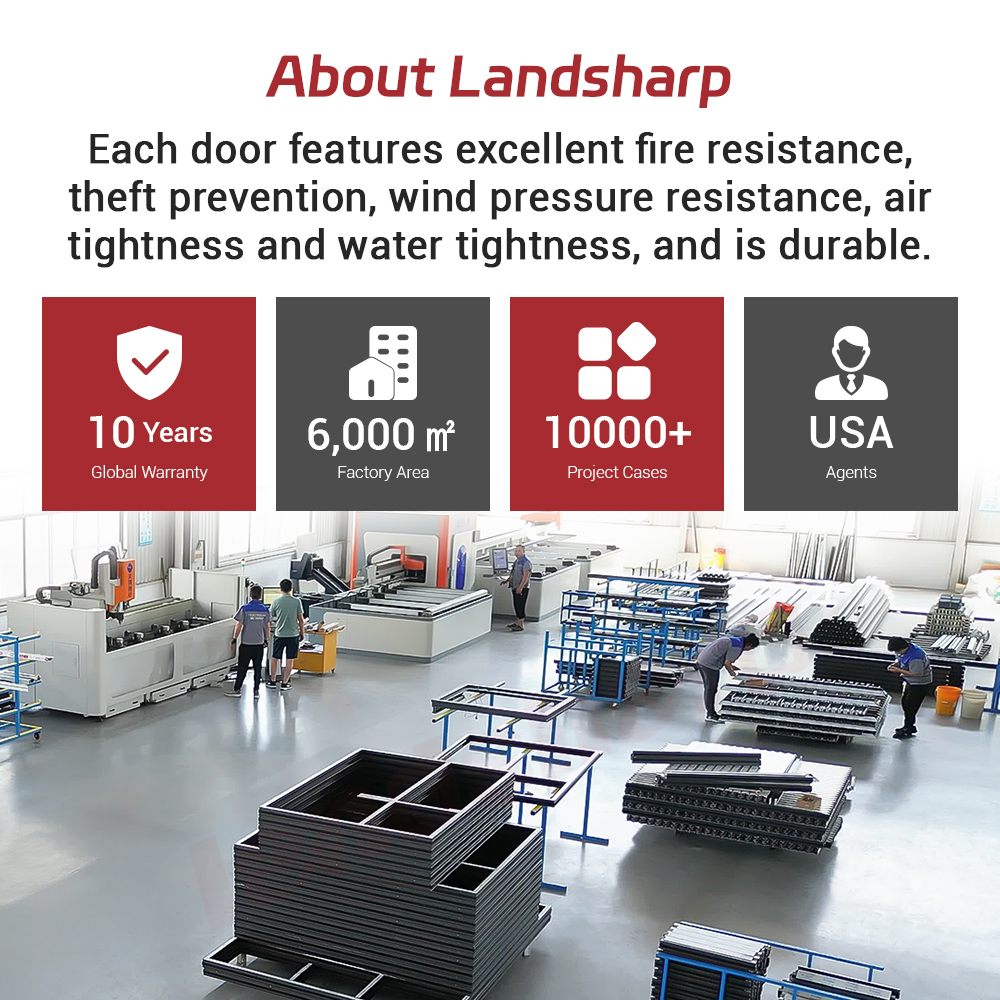

As experienced manufacturer-exporters active in the global building materials industry, products regularly feature at major international exhibitions, including the National Building Materials Exhibition in the United States and Australia's Designbuild. Direct engagement with international markets helps maintain compliance with North American and Australian requirements on energy efficiency, safety, and design aesthetics.
