Browse our engineered selection of thermal break picture windows and heavy-duty fixed glazed panels certified for commercial, residential, and high-impact zones.
Unlike operable sashes, architectural fixed windows (often referred to as picture windows) are engineered to maximize structural performance, daylight penetration, and envelope integrity. Understanding their physics is key to B2B specifications.
Aluminum fixed windows represent the baseline for modern minimal-frame architecture. Because they omit hinges, friction stays, and perimeter sash profiles, fixed windows eliminate air infiltration points and structural weaknesses common in operable systems. This design simplicity allows facade engineers to specify significantly larger glazed spans, creating floor-to-ceiling vistas without compromising load-bearing capacity under high wind pressures.
From an energy perspective, fixed windows are inherently the most efficient window type available. The primary heat transfer path is restricted to conduction through the frame profiles and radiation through the glazing assembly. Modern fixed systems utilize polyamide PA66 GF25 thermal break strips, which mechanically separate the interior and exterior aluminum profiles. This physical barrier cuts heat conductivity by up to 90%, preventing thermal bridging and surface condensation in climates ranging from sub-zero European winters to high-humidity Middle Eastern deserts.
| Engineering Property | Standard Reference | Fixed Window Performance Parameter | Key Architectural Benefit |
|---|---|---|---|
| Thermal Transmittance (U-Value) | EN ISO 10077-1 / NFRC | U-value down to 0.8 - 1.2 W/m²K (with Triple Glass) | Passive house compliance & dramatically reduced HVAC loads |
| Acoustic Isolation (STC / Rw) | ASTM E90 / ISO 10140 | STC 38dB to 48dB (with Laminated IGU) | Mitigates high-frequency urban and traffic noise pollution |
| Wind Load Resistance | AS 2047 / ASTM E330 | Serviceability pressure up to 3000 Pa / 4500 Pa (Ultimate) | Structural safety for coastal high-rises and hurricane regions |
| Air Infiltration / Water Tightness | AAMA 101 / WDMA / CSA | 0.01 L/(s·m²) (Air) / 750 Pa (Water Resistance) | Prevents indoor mold growth and dynamic storm penetration |
Explore standard engineering frameworks optimized at the Foshan manufacturing plant to meet heavy B2B contract demands.
Manufactured using primary 6063-T5 or 6063-T6 architectural-grade extruded aluminum. Profile wall thickness reaches 2.0mm to 3.0mm for high-span structural stability, offering multi-cavity designs that support heavy glazing loads without perimeter deflection.
Options range from double-glazed units (DGU) to triple-glazed units (TGU). Engineered with Low-E coatings, warm-edge spacers, and filled with 90% purity Argon gas. We customize laminated, tempered, and frosted configurations for targeted acoustic and solar control.
Architectural surface finishes engineered to survive challenging marine and urban microclimates. Our facilities feature AkzoNobel powder coating (AAMA 2604/2605), architectural anodizing (up to 25 microns), and heavy PVDF fluorocarbon coatings for fade resistance.
Foshan is the undisputed global hub for architectural aluminum profiles. Discover how our centralized supply chain translates to reliable quality control, faster lead times, and competitive margins.
Foshan ORM Windows Co., Ltd. is a premier manufacturer established in 2011 in Guangdong, China. Spanning over 20,000 square meters of highly automated manufacturing space, the plant handles all stages of production under one roof. By operating alongside top-tier extrusion lines and chemical anodizing plants in Shishan, Foshan, we bypass middleman procurement, resulting in highly competitive unit prices for massive construction projects.
Equipped with 280+ skilled glass technicians and advanced CNC double-head cutting saws, automated corner-crimping machines, and computerized glass assembly lines, ORM delivers precision within margins of 0.5mm. This high concentration of local supply chains guarantees consistent access to high-quality raw materials, specialized hardware, and custom-engineered rubber gaskets, ensuring no project experiences supply delays.
For international projects requiring compliance and high durability, our location in Foshan enables quick access to bulk container shipping lines from Nansha, Shekou, and Yantian ports. B2B buyers benefit from a fully-integrated logistics network that reduces sea freight overheads and speeds up global customs clearance processes.
Deploying fixed windows globally requires engineering compliance with rigorous structural, energy, and acoustic performance codes.
Architects and project developers face a complex web of national building codes. A high-performance window in Frankfurt must meet different criteria than one installed in Miami or Sydney. ORM Windows addresses these requirements by engineering local market certifications directly into the extrusion and glazing design process.
For project sites in the US and Canada, our fixed windows are engineered to comply with NFRC thermal standards. High-wind coastal zones (like Florida) require rigorous cyclic wind pressure and large missile impact testing (AAMA/WDMA/CSA 101/I.S.2/A440) to guarantee safety during hurricane events.
Our European export lines carry full CE Markings, meeting EN 14351-1 requirements. The primary engineering focus is on strict thermal performance (U-values below 1.2 W/m²K) to meet regional carbon-reduction mandates and European passive house principles.
Exported units destined for Australia are tested in compliance with AS 2047 structural requirements and AS 1288 glass selection and safety guidelines, ensuring performance under harsh UV radiation and high wind loads.
Achieve cost-efficiencies and align your projects with the future of architectural glazing technology.
B2B Procurement Optimization: Procurement managers must balance logistics overheads, shipping damage risks, and quality verification. To prevent damage, ORM Windows packs structural glass units in fully enclosed plywood crates with integrated corner guards, desiccant bags, and heavy-duty shrink wrap. We offer FOB, CIF, and DDP shipping configurations, coordinating with regional customs agents to ensure clear logistics timelines.
Smart Glass & Electrochromic Integration: The architectural sector is shifting rapidly towards active building envelopes. Fixed windows are ideal hosts for electrochromic glass systems, which transition from clear to tinted using low-voltage electrical currents. This reduces solar heat gain dynamically, lowering HVAC demands in highly glazed commercial office towers.
Low-Carbon Aluminum: Sustainable building certifications, including LEED and BREEAM, reward projects that utilize low-embodied-carbon building materials. Our manufacturing workflows include options for recycled primary aluminum billets and eco-friendly powder coatings, reducing carbon footprints without sacrificing structural strength.
From modern structural glass facades to energy-efficient residential villas, fixed windows are essential components in performance-driven architecture.

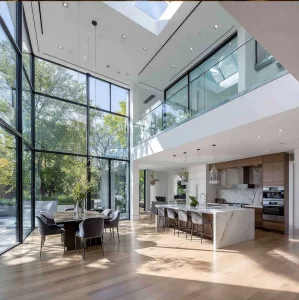

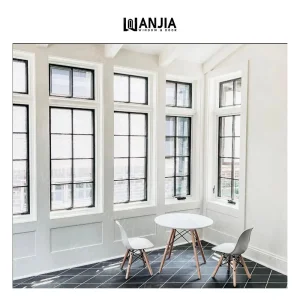

High-end residential projects utilize large-format fixed glass panels to create seamless boundaries between indoor spaces and natural landscapes. Our custom waterproof corner joints allow for minimal frameless glass-to-glass corner details that maximize panoramic views.
Commercial facades require durable storefront solutions that resist high daily traffic and physical impact. High-strength aluminum fixed profiles provide the necessary structural load-bearing capacity to safely frame oversized displays and security glazing.
Find answers to technical and logistical questions related to ordering high-performance fixed windows from China.
Examine our remaining engineered configurations, including large floor-to-ceiling viewing panes, soundproof glass systems, and custom residential profiles.
