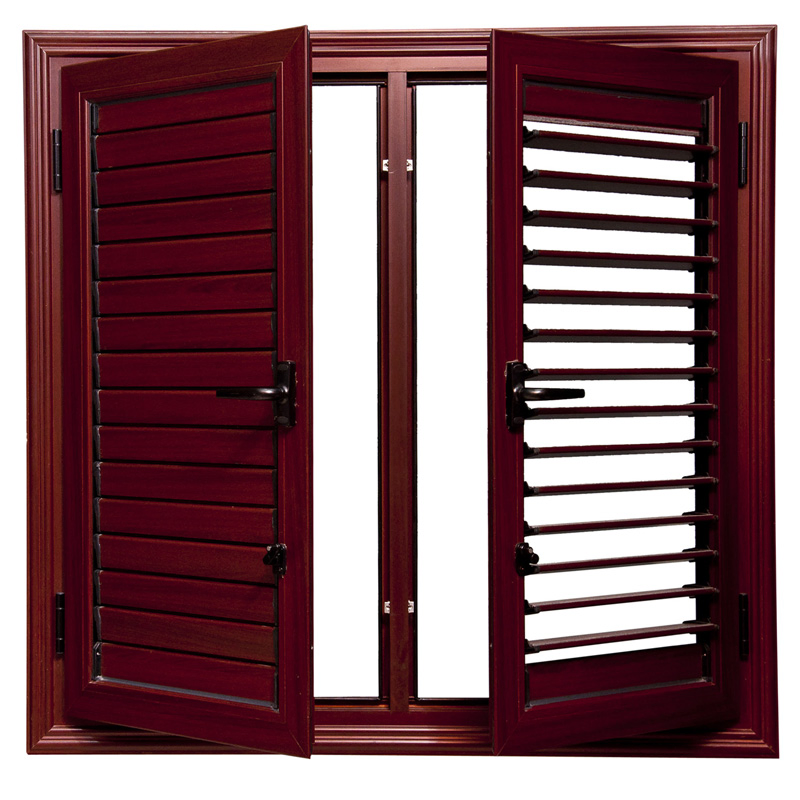

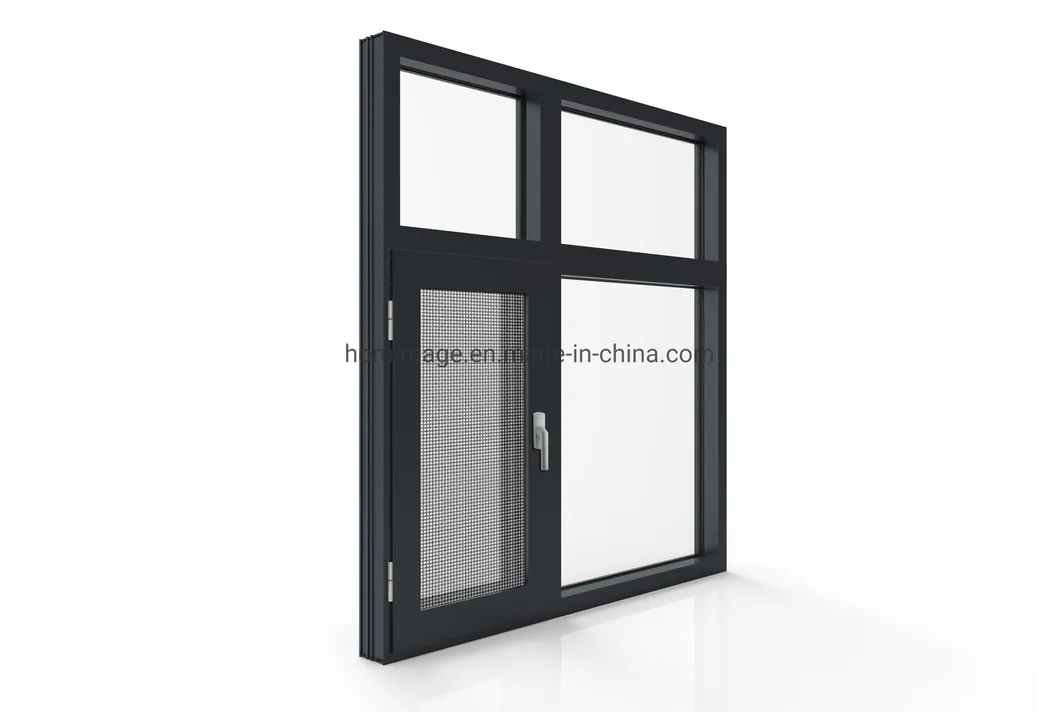

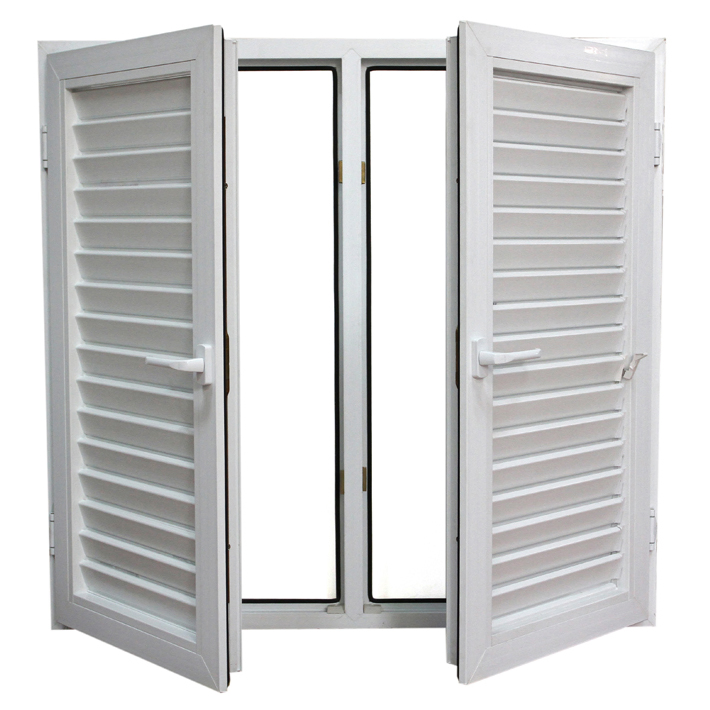

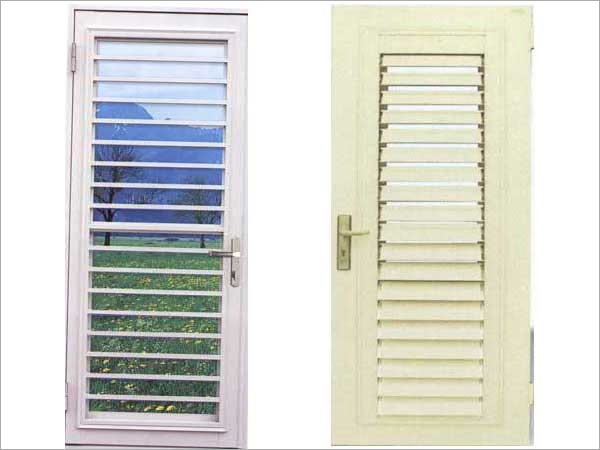

Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
1 / 5
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen

Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info
Model NO.
ACW
Frame Material
Aluminum Alloy
Screen Netting Material
Steel
Style
Modern
Opening Pattern
Horizontal
Function
Heat Insulation, Soundproof, Anti-Theft, Airproof, Insect-proof, Dust-proof, Invisible, Decoration
Surface Finishing
Finished
Glass
Clear/Frosted/Reflective/Low-E
Surface
Powder Coating/Anodized/Eletrophoresis/PVDF
Airtight Performance
Level 6
Watertight Performance
500PA
Windload Resistance
4.1kpa
Transport Package
EPE Foam+Plywood
Specification
6063-T5 ALUMINIUM ALLOY
Origin
China
HS Code
7601101000
Production Capacity
100000sqm/Year
Product Description

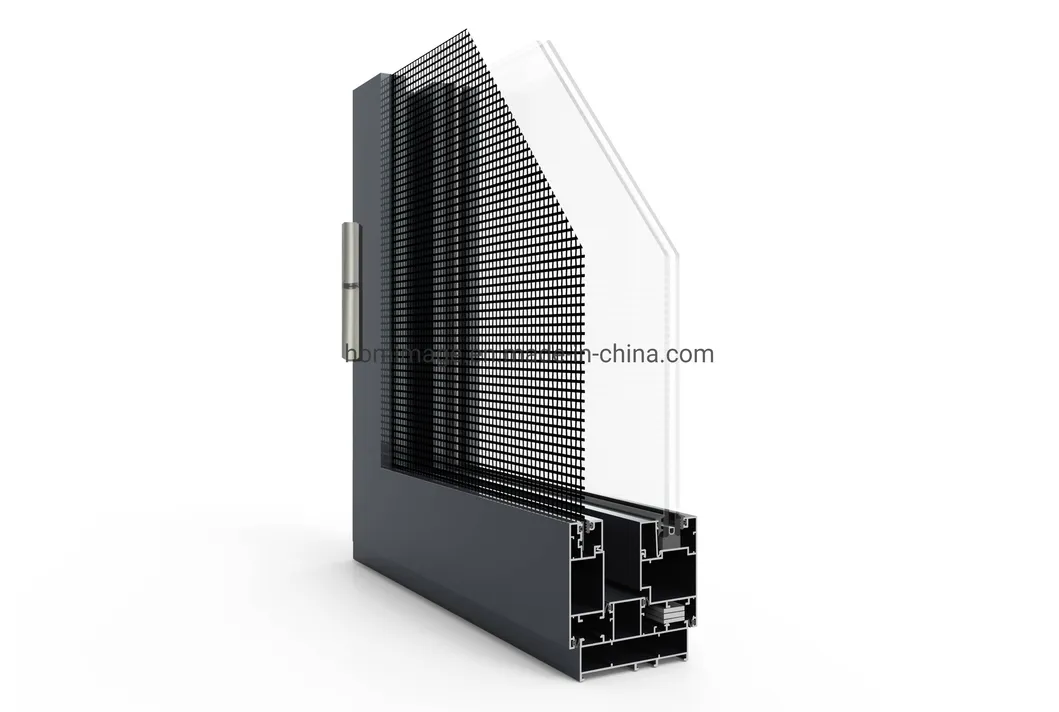

HW49/HW100 series Casement Window

HW49/HW100 series is an outside inside casement system for elegant windows, having multiple opening ways including opening outside, inside, awning, and tilt-turn.

Inward side glass bead solves the security problems in low buildings and the safety installation problems in high buildings.

The new drainage design guarantees excellent water tightness.

Two different frame thicknesses are available to select; we can offer the most cost-effective solution depending on customer requirements.
Performance Details
Heat Preservation Performance W/(m².k) Sound Insulation Performance (dB) Watertight Performance (Pa) Airtight Performance Wind Load Resistance (kPa)
6+12A+6 Low-E, 2.3-2.8, level 5/6 35dB, level 4 500PA, level 5 Level 6 4.1KPA, level 7
Parameters Details
Suitable Width/Height of Sash (mm) Visible Width/Height (mm) Aluminium Width (mm) Glass Thickness
Casement Window:
- Width: 300-800mm
- Height: 300-1800mm
- Weight: 45kg 		HCW49: Frame Width 51mm, Sash Width 74mm.

HCW100 (with steel fly screen sash): Frame Width 49mm, Sash Width 74mm. 		HW49: Frame Depth 49mm, Sash Depth 49mm.

HW100 (with steel fly screen sash): Frame Depth 100mm, Sash Depth 49mm. 		SGU: 4-10mm

DGU: 14-35mm

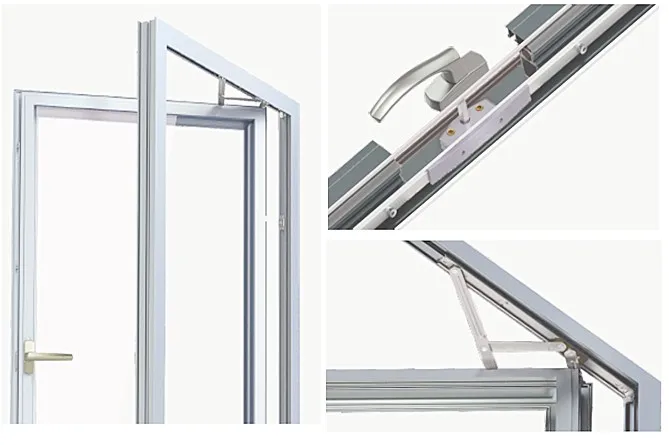

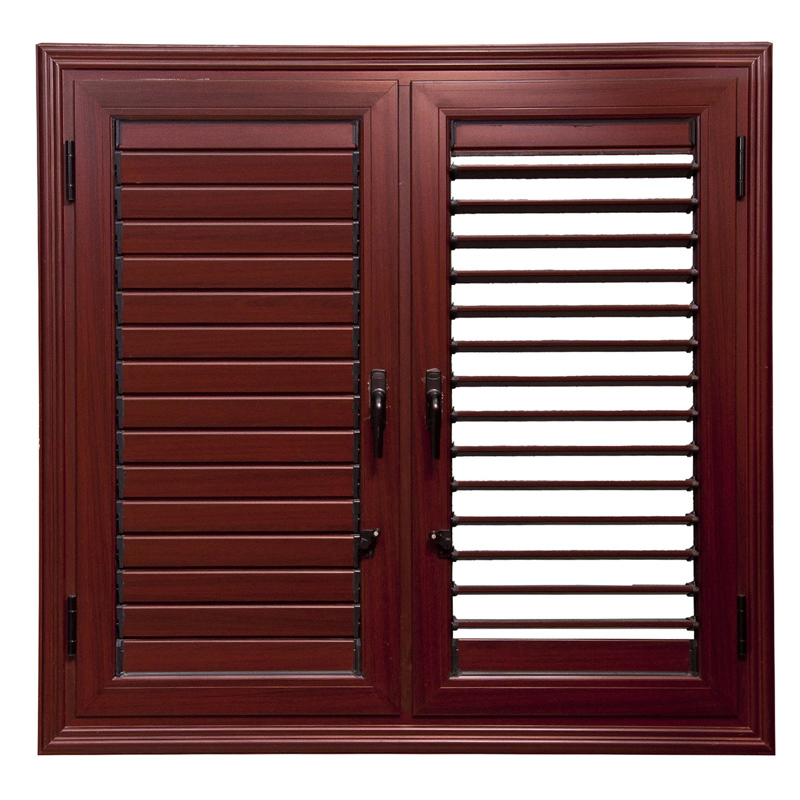

Product Gallery
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
Selected Materials Aluminium Casement/Awing Window with Steel Fly Screen
Powder Coating, Anodized and Wooden Finish
Powder Coating, Anodized and Wooden Finish Options
Finish Chart 1
Finish Chart 2
Aluminium Extrusion Factory Capacity
Aluminium Alloy Extrusion Diameters Billet Casting Line Extrusion Line Powder Coating Line Anodized Line
6063/6061-T4,5,6 80mm-300mm 2*casting Lines 14*extrusion Line 1*vertical coating line 1*full automatic line
Factory Area Annual Output Staff / R&D
1800 Acres 100,000 Tons 650 / 25 members
Workshop Overview

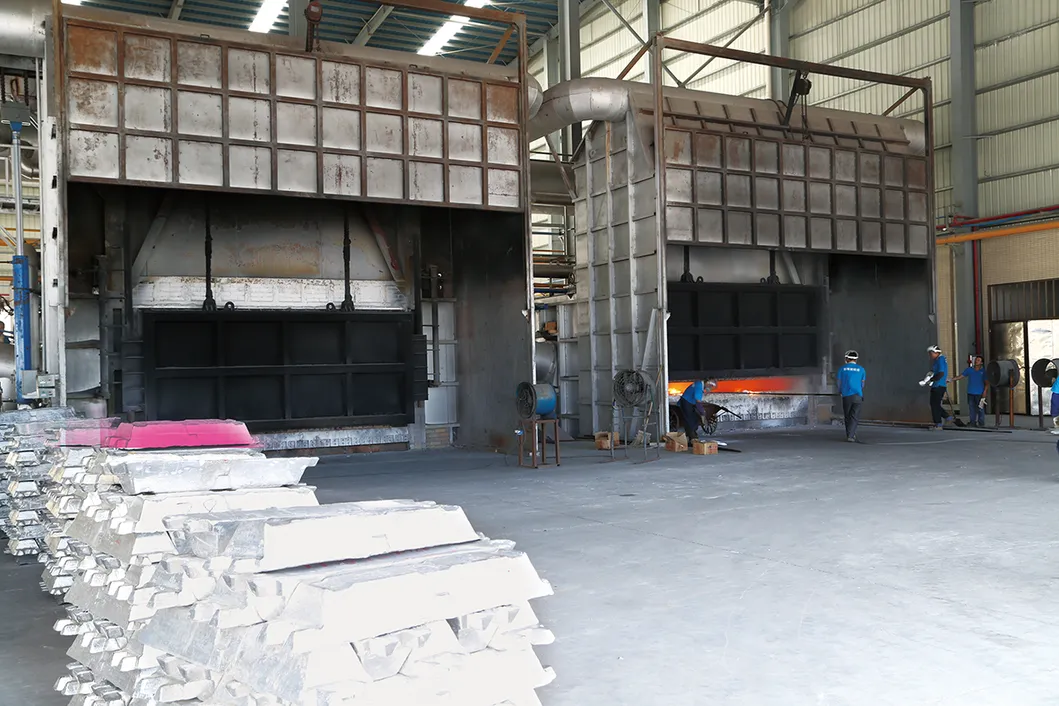

Billet Casting Workshop
Billet Casting Workshop

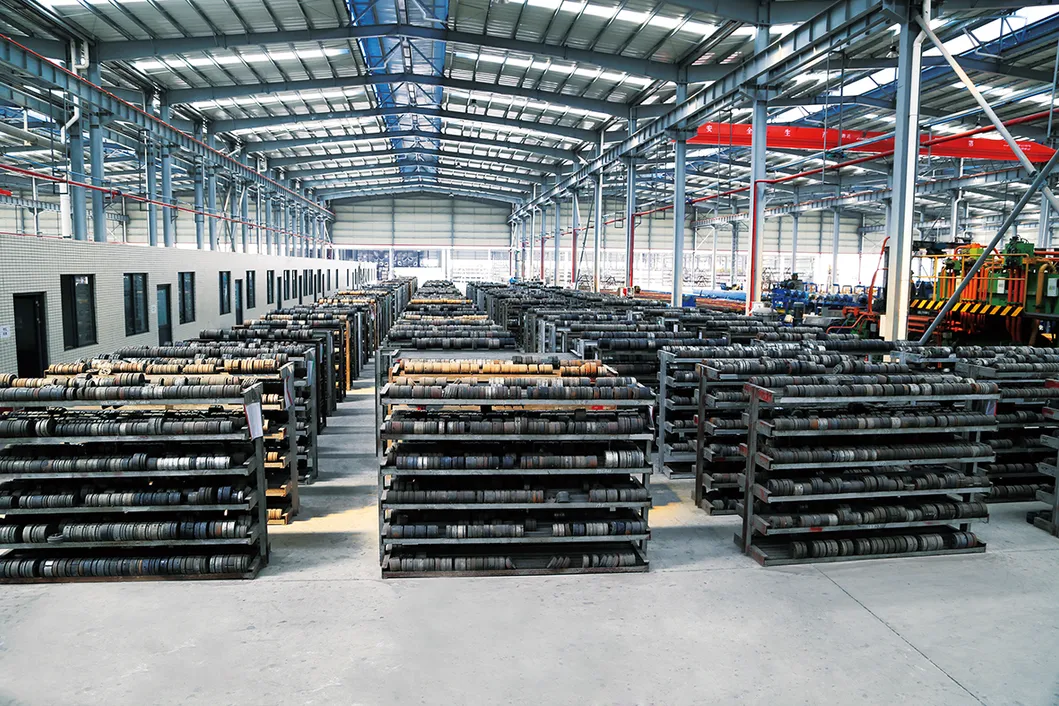

Dies Workshop
Dies Workshop

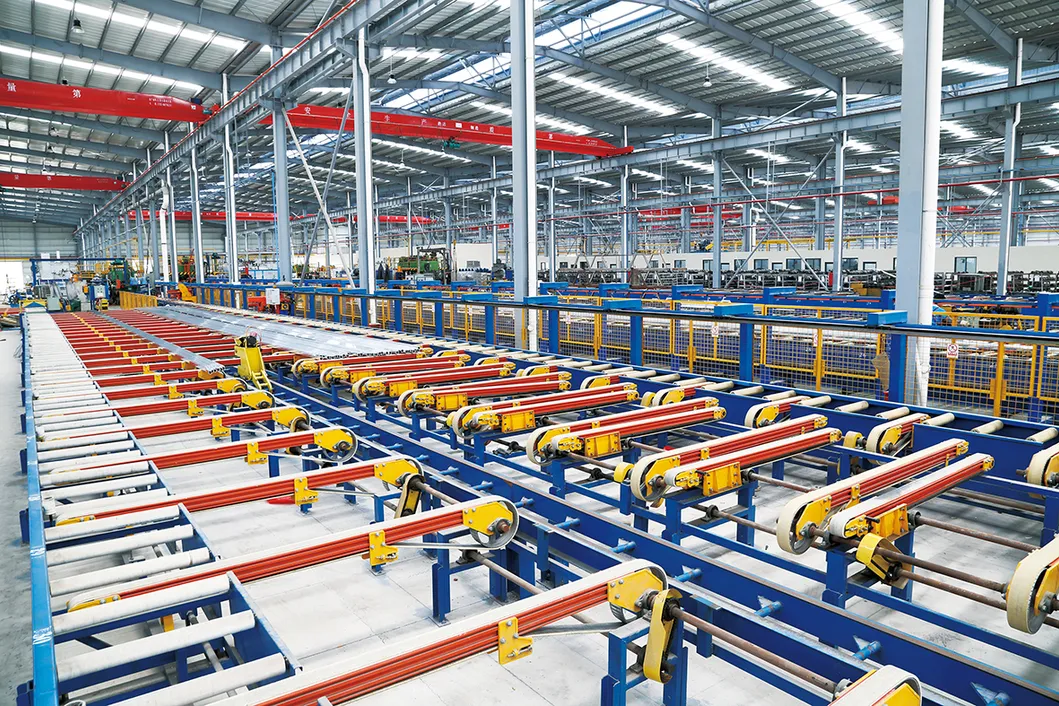

Extrusion Workshop
Extrusion Workshop

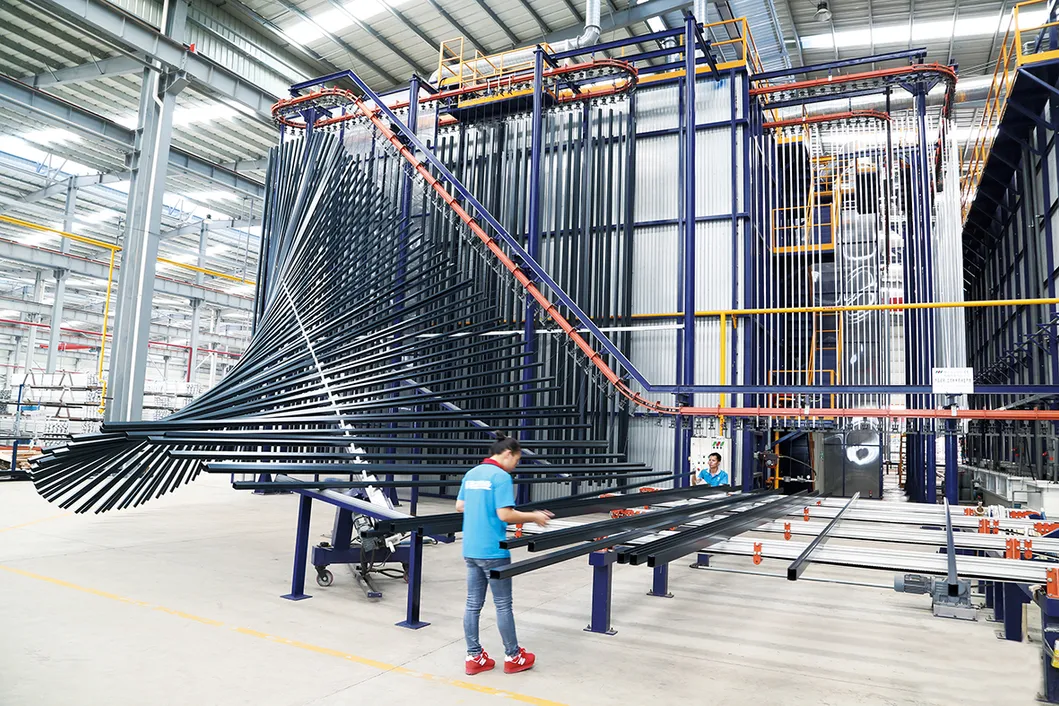

Powder Coating Line
Powder Coating Line

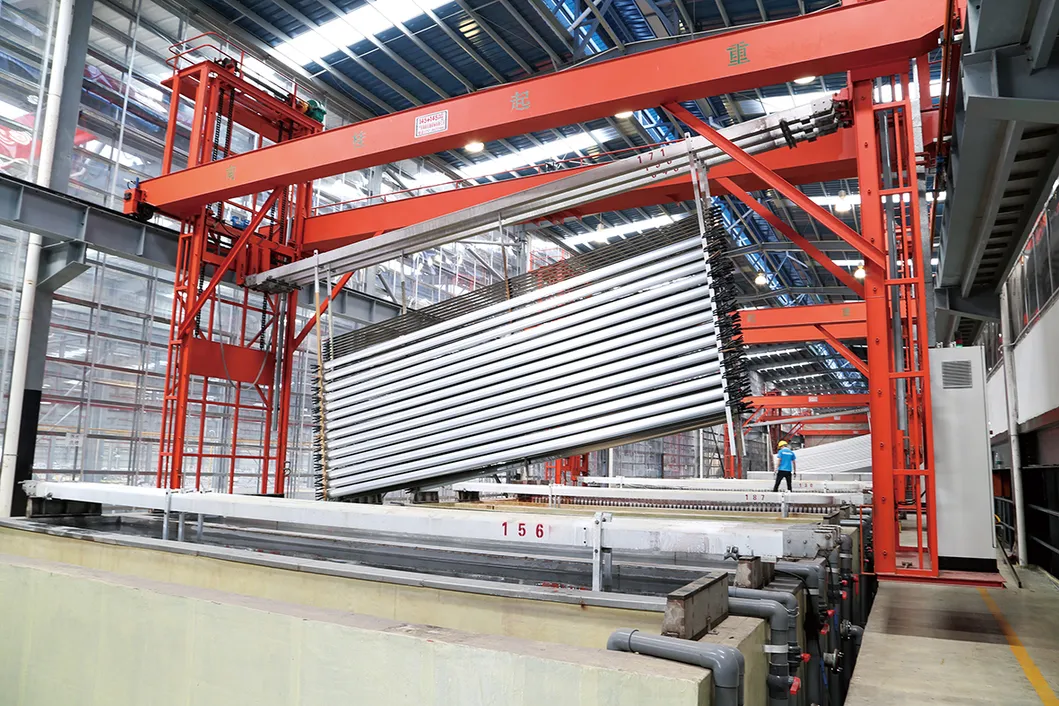

Full-Automatic Anodized Workshop
Full-Automatic Anodized Workshop
What Products We Offer
  • Aluminium profiles
  • Sliding Doors
  • Sliding Windows
  • Entrance Doors
  • Casement Windows
  • Bi-fold doors
  • Unitized Curtain Walls
  • Shopfronts
  • Sun rooms
  • Partitions
  • Balcony railings
  • Structural Glazing
  • Aluminium cladding
  • Aluminium formworks
What Services We Offer
Customized Solutions
Our teams bring the most professional and competitive suggestions for your engineering and design needs, providing solutions for various sizes and complex projects.
Technical Support
Independent technology teams provide comprehensive technical support for aluminium curtain walls (such as wind load calculation, systems and structural optimization) and installation guides.
System Design
Based on client and market requirements, we develop new aluminium window and door systems matching excellent accessories to better meet your target market requirements.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional aluminium manufacturer with more than 30 years of manufacturing experience.
How long is your delivery time?
Generally, it is 15-20 workdays after receiving payment.
Do you provide samples for free? What's the MOQ?
The new die samples are free for approval and inspection. The minimum order quantity (MOQ) is 8-10 tons.
What are your payment terms?
30% upon order confirmation, and the balance should be paid before delivery by T/T, after receiving B/L copy, or L/C at sight.
What surface treatments are available for your windows?
We offer Powder Coating, Anodized, Electrophoresis, and PVDF surface finishes to suit different design needs.
What is the wind load resistance performance of these casement windows?
Our casement windows have tested wind load resistance of 4.1kpa, achieving Level 7 performance rating.
