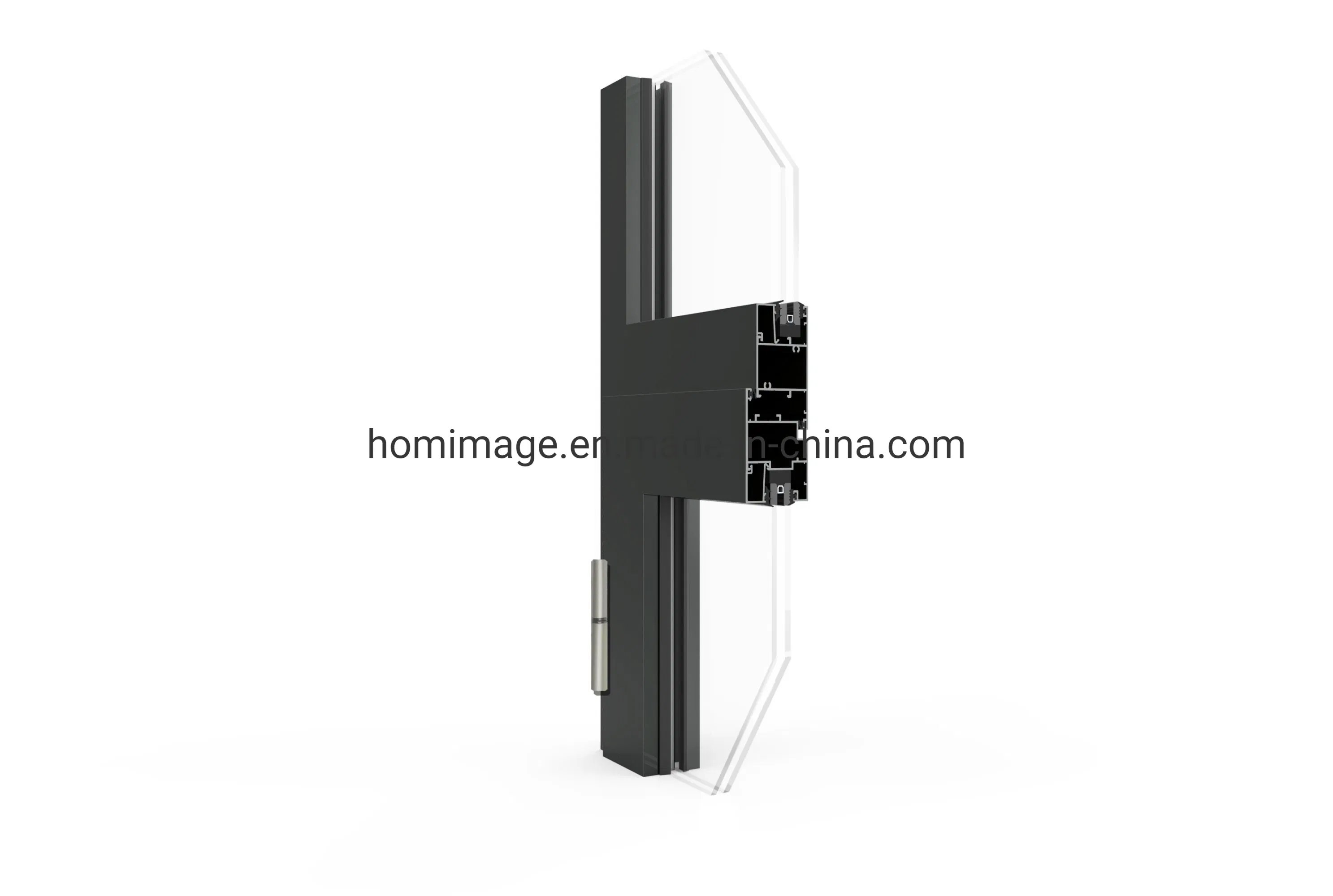

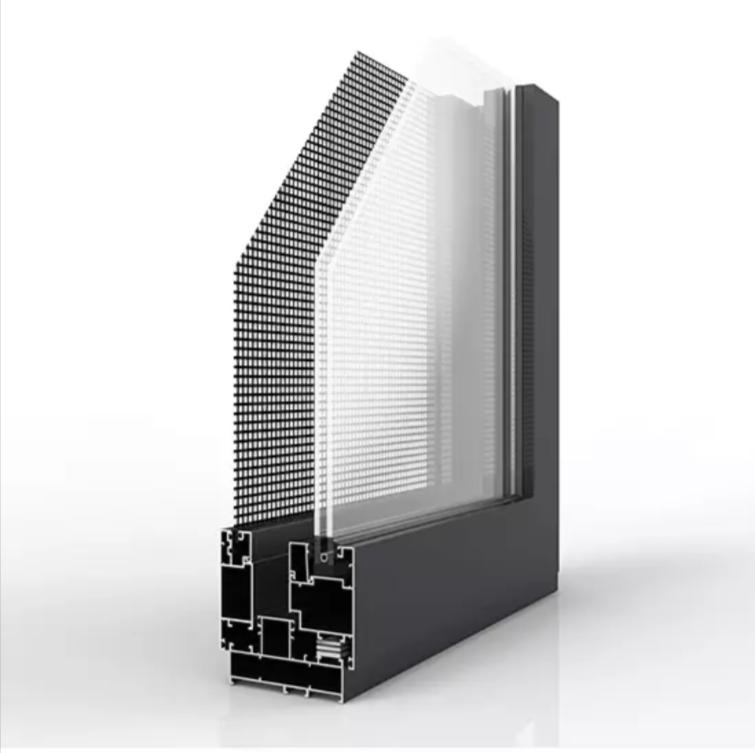

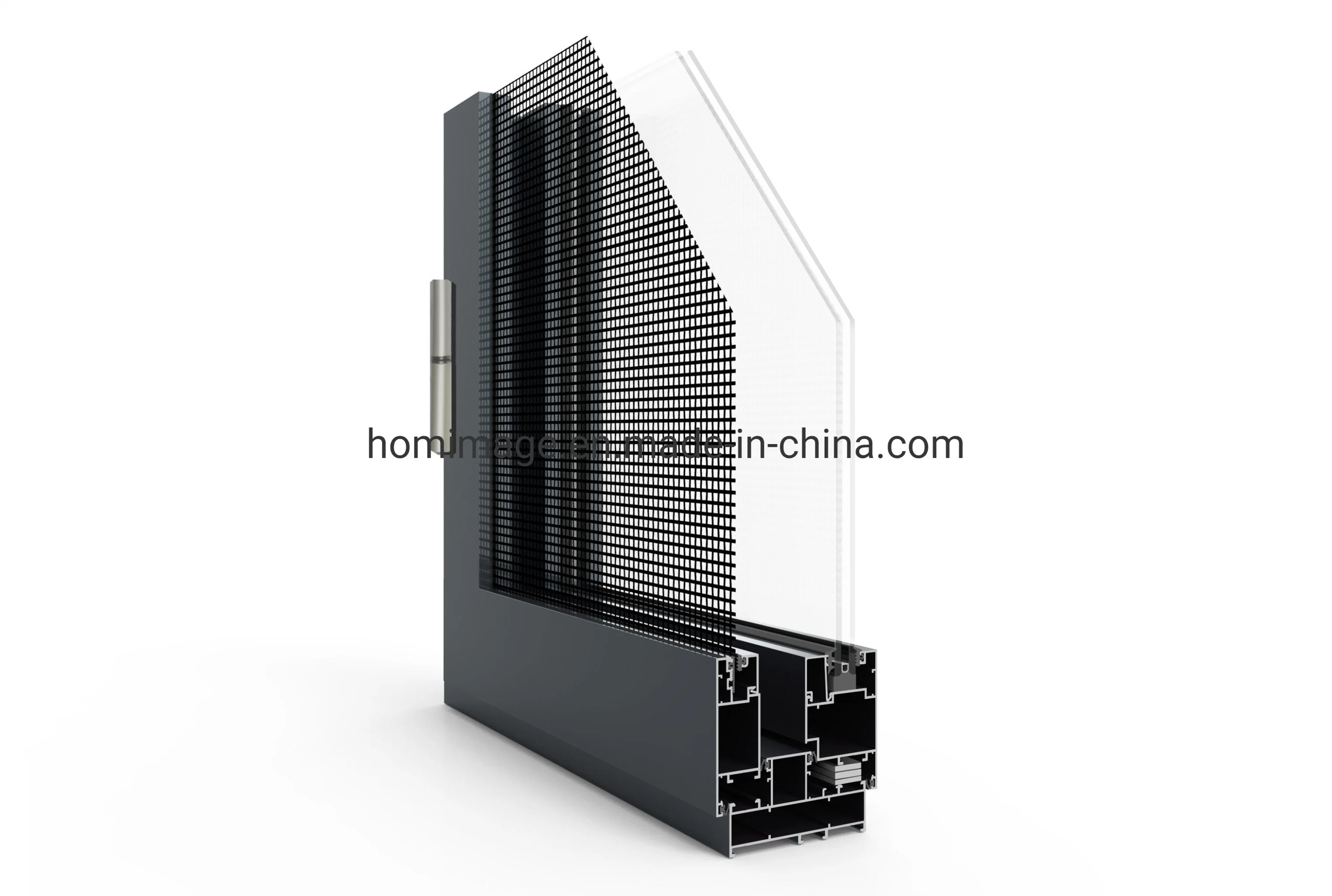

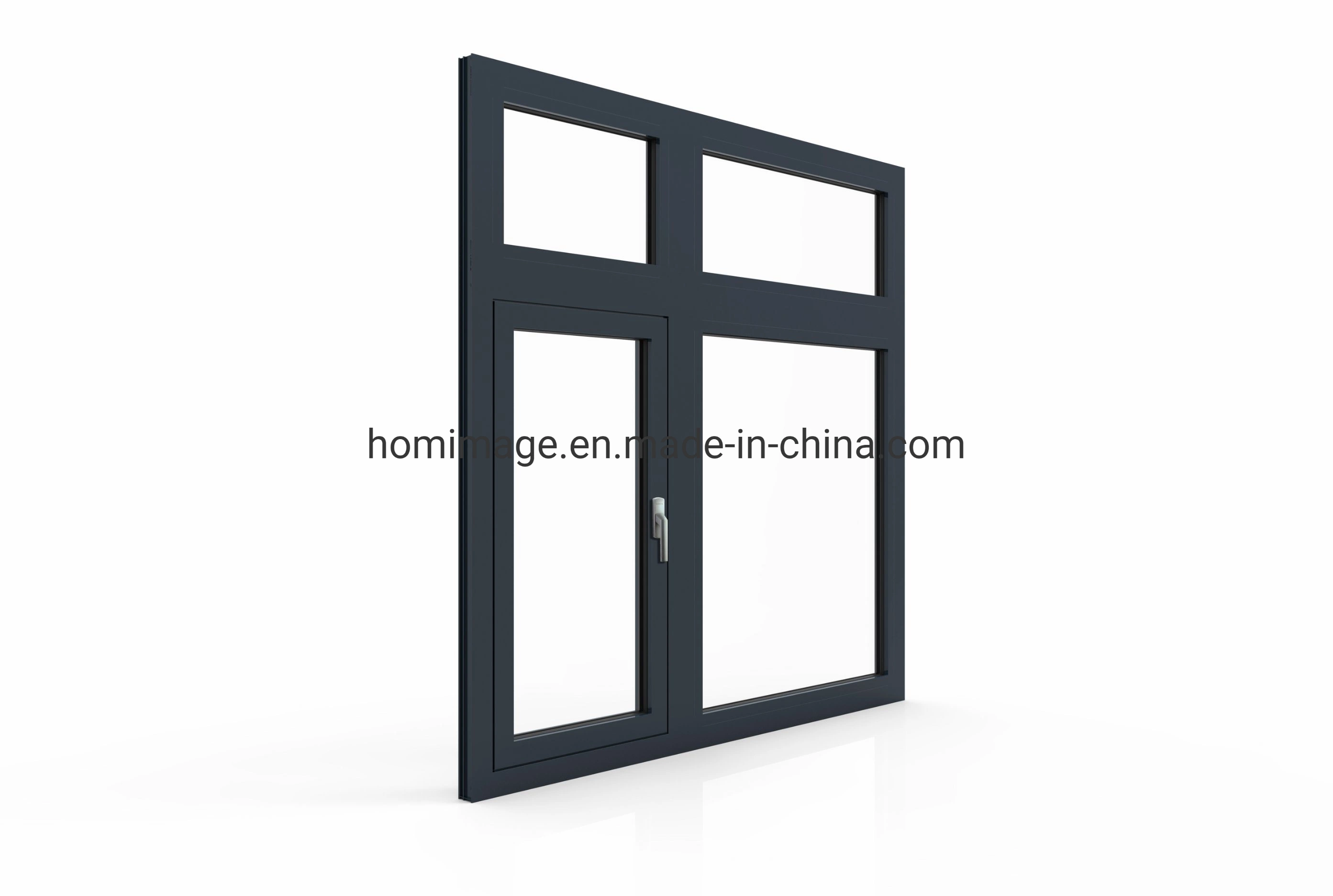

HW49/HW100 series is an outside-inside casement system for elegant windows, offering multiple opening ways including outside, inside, awning, and tilt-turn.
The inward-side glass bead solves the security issues in low buildings and simplifies safety installation in high buildings.
The advanced drainage design guarantees excellent water tightness, while the availability of two different frame thicknesses provides a cost-effective solution tailored to specific customer needs.
| Performance Indicators | ||||
|---|---|---|---|---|
| Heat Preservation Performance (W/(m²·k)) | Sound Insulation Performance (dB) | Watertight Performance (Pa) | Airtight Performance | Wind Load Resistance (kPa) |
| 6+12A+6 Low-E 2.3 - 2.8 (Level 5/6) |
35 dB (Level 4) | 500 Pa (Level 5) | Level 6 | 4.1 kPa (Level 7) |
| Parameters | |||
|---|---|---|---|
| Suitable Width/Height of Sash (mm) | Visible Width/Height (mm) | Aluminium Width (mm) | Glass Thickness |
|
Casement Window: - Width: 300-800 mm - Height: 300-1800 mm - Max Weight: 45 kg |

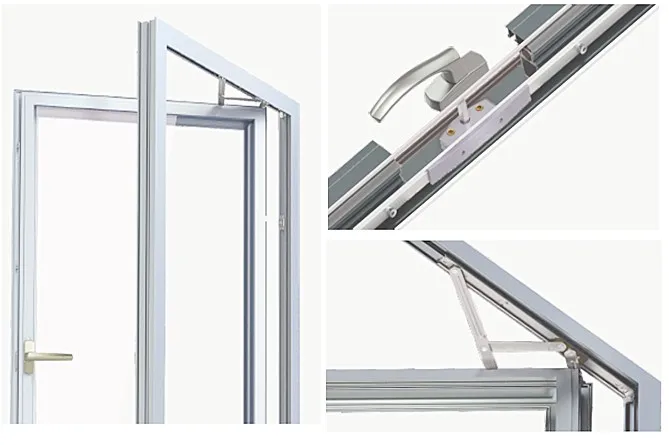

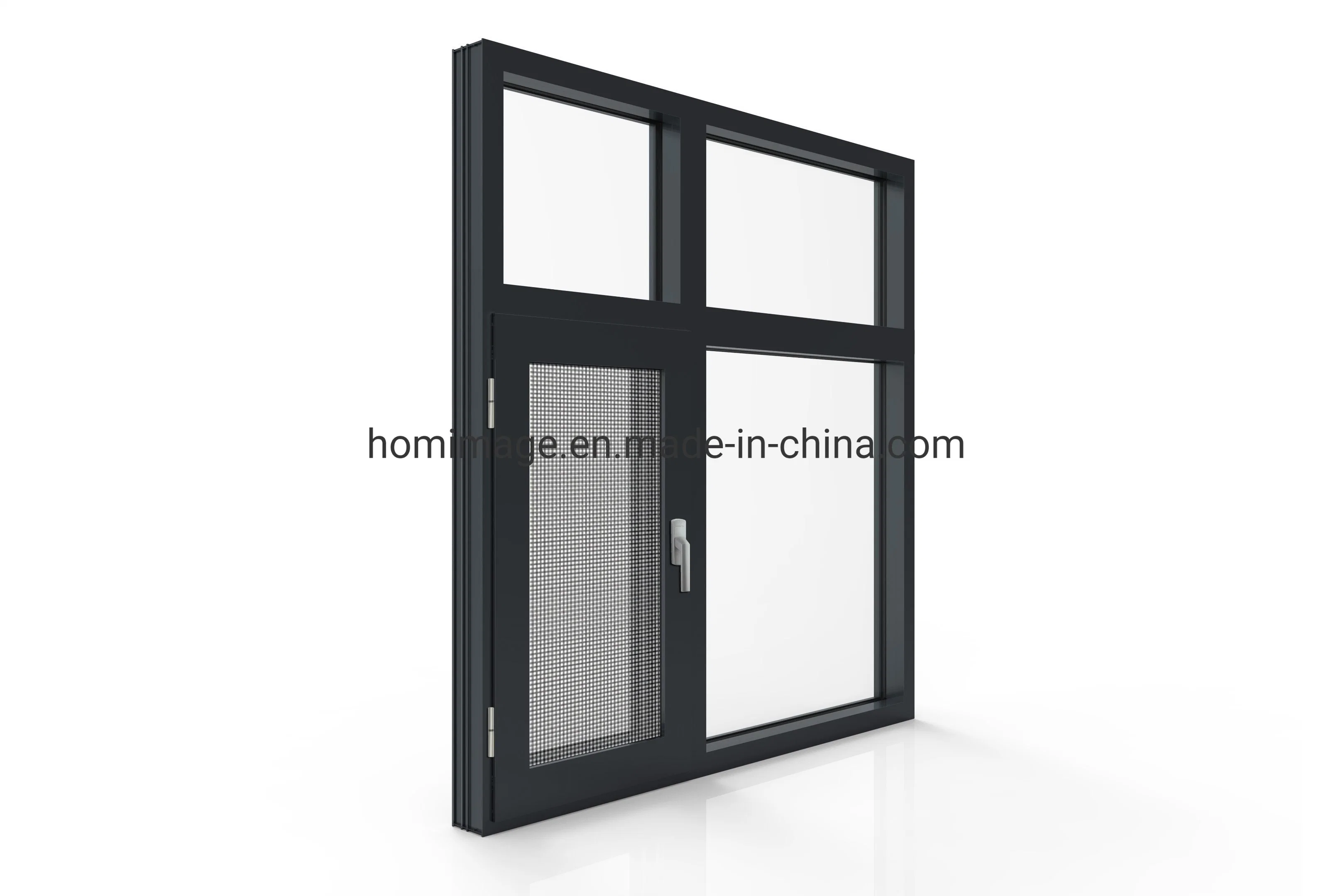

HCW49: Frame Width 51mm, Sash Width 74mm HCW100: (with steel fly screen sash) Frame Width 49mm, Sash Width 74mm |
HW49: Frame Depth 49mm, Sash Depth 49mm HW100: (with steel fly screen sash) Frame Depth 100mm, Sash Depth 49mm |
SGU: 4 - 10 mm DGU: 14 - 35 mm |

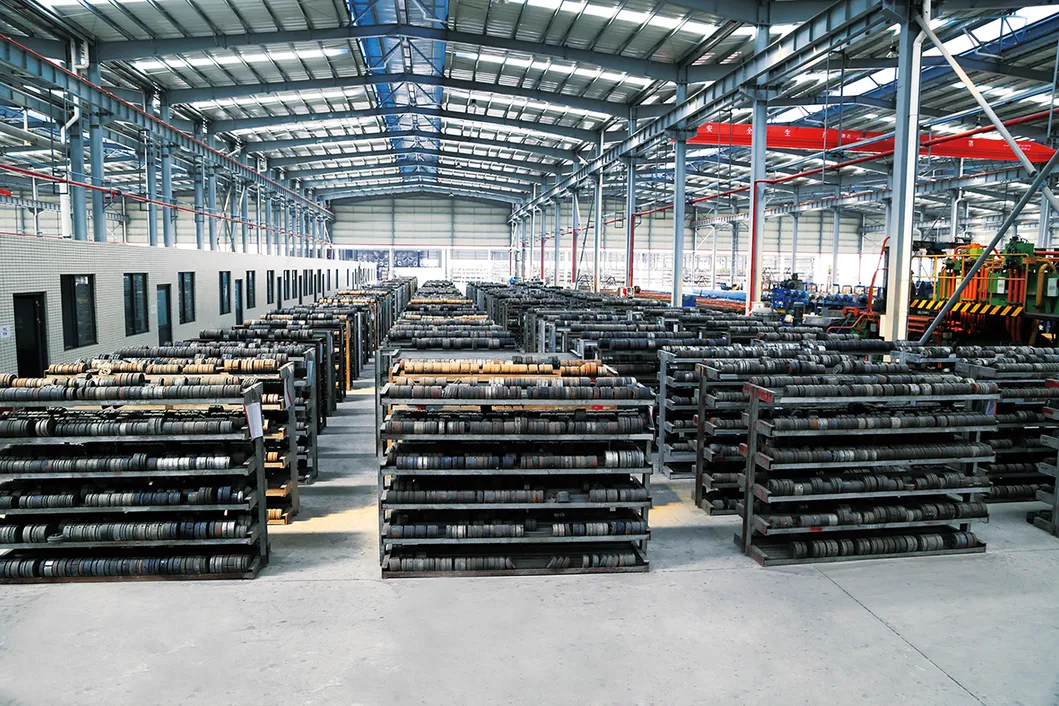

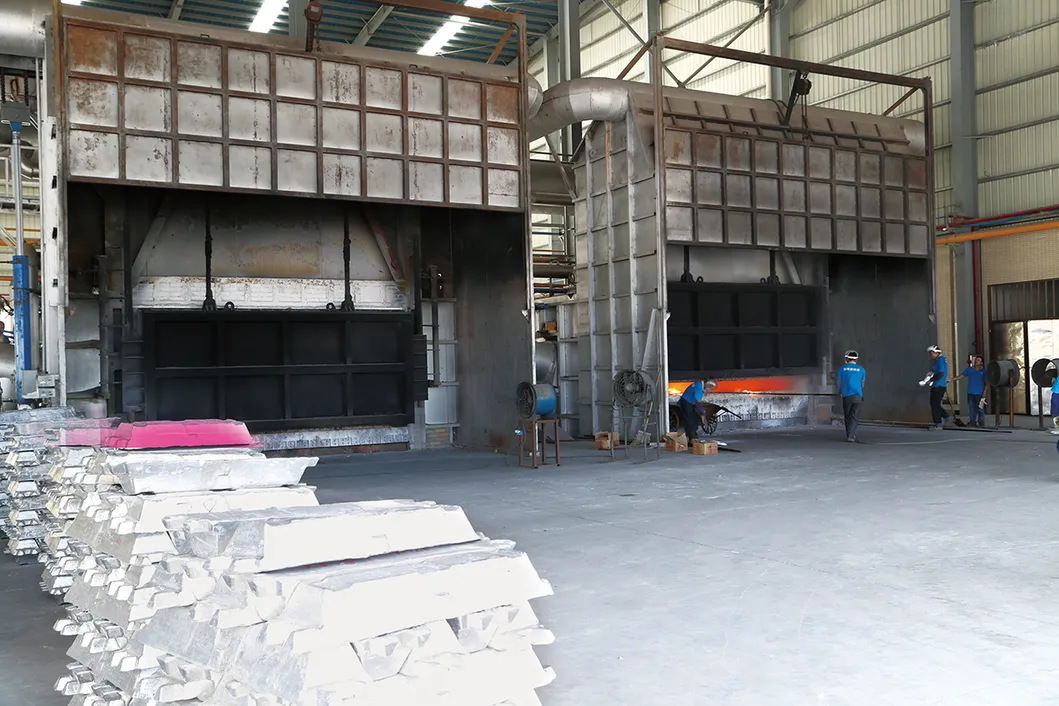

| Aluminium Alloy | Extrusion Diameters | Billet Casting Line | Extrusion Line | Powder Coating Line | Anodized Line |
|---|---|---|---|---|---|

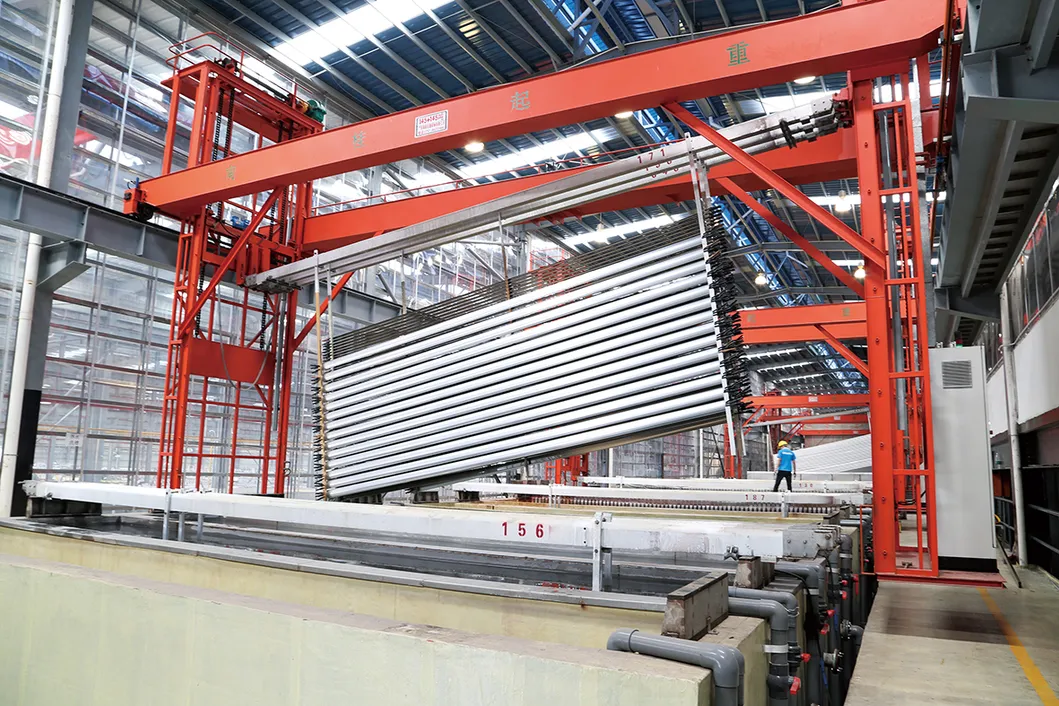

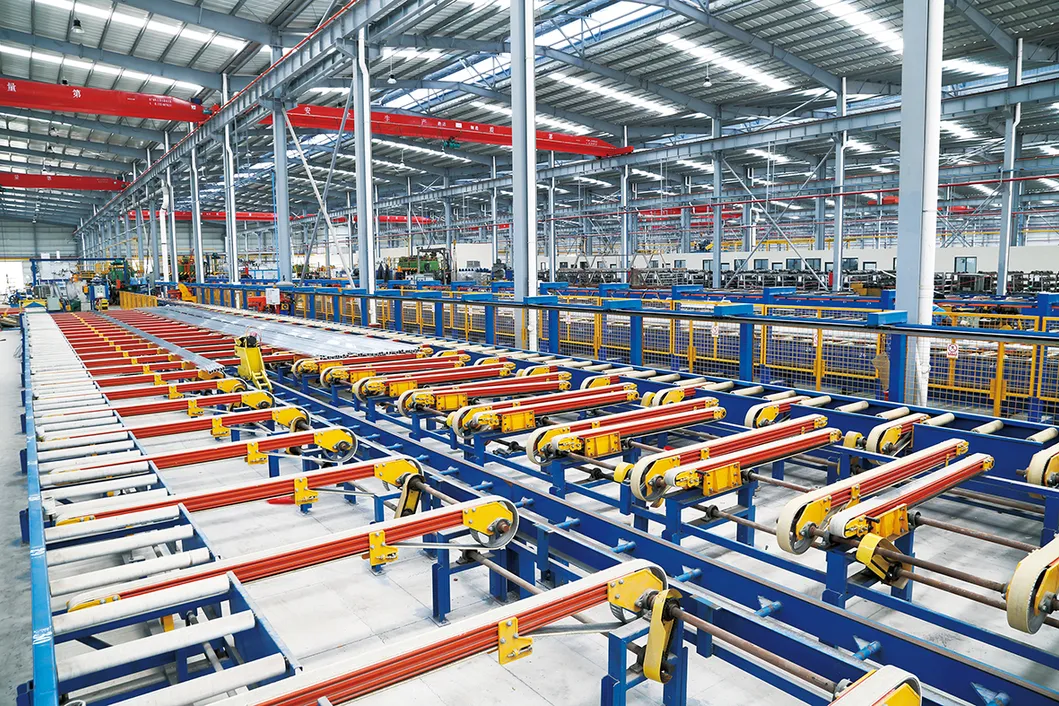

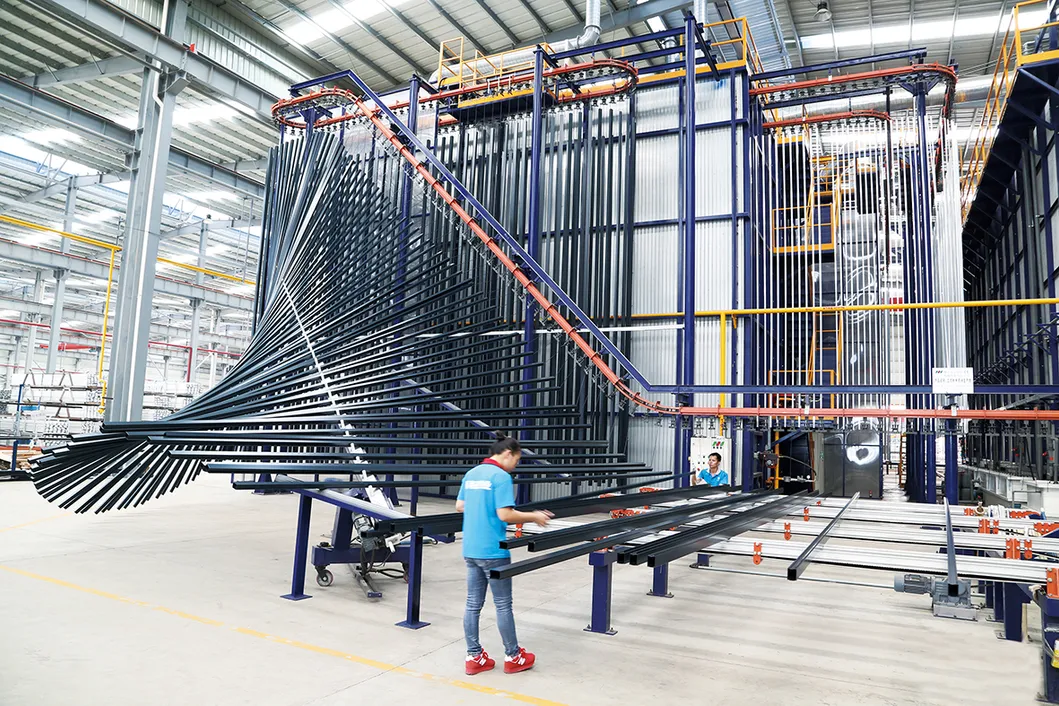

| 6063/6061-T4, 5, 6 | 80 mm - 300 mm | 2x Casting Lines | 14x Extrusion Lines | 1x Vertical Coating Line | 1x Full Automatic Line |
| Factory Area | Annual Output | Staff / R&D Team | |||
| 1800 Acres | 100,000 Tons | 650 / 25 Members | |||
Professional and competitive layout designs satisfying complex engineering requests and various sizes.
System and façade optimization, wind load calculations, and full installation guides.
Developing advanced aluminium window and door systems combined with high-quality accessories.
We are a dedicated aluminium manufacturer with over 30 years of industry experience.
Generally, delivery takes 15-20 working days following the receipt of payment.
Yes, new die samples are provided free of charge for approval and testing. The standard production MOQ is 8-10 tons.
We require a 30% deposit upon order confirmation. The remaining balance is payable prior to delivery via T/T, upon receipt of B/L copy, or via L/C at sight.
We support multiple surface treatments including Powder Coating, Anodized finishes, Electrophoresis, PVDF, and Wooden texture designs.
The standard width range for a casement window sash is 300-800mm, height range is 300-1800mm, with a maximum load capacity of 45kg.
